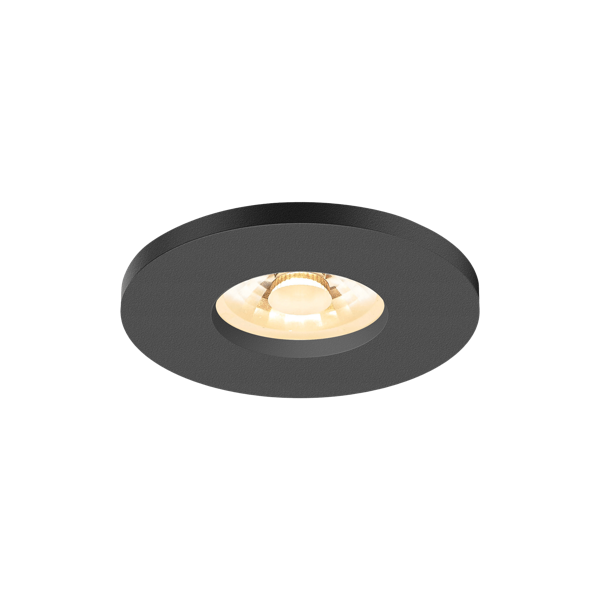

Casa XS
/
The Karizma Luce Casa XS is a fixed led downlight from the Delizia di Luce series. Made from aluminum. Available luminaire flux: 510lm, 520lm and 530lm. CCT: 2700K, 3000K and 4000K. Beam angles: 10°, 20° and 30°. Luminaire is available in black and white.
Aktiva filter: 6/6
|
|
291BB9271000 | 2700 K | 90 | 927 (2700K / CRI90) | BXRE-27G04FH-C-83 | 10 ° | 510 lm |
|
|
291BB9272000 | 2700 K | 90 | 927 (2700K / CRI90) | BXRE-27G04FH-C-83 | 20 ° | 510 lm |
|
|
291BB9273000 | 2700 K | 90 | 927 (2700K / CRI90) | BXRE-27G04FH-C-83 | 30 ° | 510 lm |
|
|
291BB9301000 | 3000 K | 90 | 930 (3000K / CRI90) | BXRE-30G04FH-C-83 | 10 ° | 520 lm |
|
|
291BB9302000 | 3000 K | 90 | 930 (3000K / CRI90) | BXRE-30G04FH-C-83 | 20 ° | 520 lm |
|
|
291BB9303000 | 3000 K | 90 | 930 (3000K / CRI90) | BXRE-30G04FH-C-83 | 30 ° | 520 lm |
|
|
291BB9401000 | 4000 K | 90 | 940 (4000K / CRI90) | BXRE-40G04FH-C-83 | 10 ° | 530 lm |
|
|
291BB9402000 | 4000 K | 90 | 940 (4000K / CRI90) | BXRE-40G04FH-C-83 | 20 ° | 530 lm |
|
|
291BB9403000 | 4000 K | 90 | 940 (4000K / CRI90) | BXRE-40G04FH-C-83 | 30 ° | 530 lm |
|
|
291BW9271000 | 2700 K | 90 | 927 (2700K / CRI90) | BXRE-27G04FH-C-83 | 10 ° | 510 lm |
|
|
291BW9272000 | 2700 K | 90 | 927 (2700K / CRI90) | BXRE-27G04FH-C-83 | 20 ° | 510 lm |
|
|
291BW9273000 | 2700 K | 90 | 927 (2700K / CRI90) | BXRE-27G04FH-C-83 | 30 ° | 510 lm |
|
|
291BW9301000 | 3000 K | 90 | 930 (3000K / CRI90) | BXRE-30G04FH-C-83 | 10 ° | 520 lm |
|
|
291BW9302000 | 3000 K | 90 | 930 (3000K / CRI90) | BXRE-30G04FH-C-83 | 20 ° | 520 lm |
|
|
291BW9303000 | 3000 K | 90 | 930 (3000K / CRI90) | BXRE-30G04FH-C-83 | 30 ° | 520 lm |
|
|
291BW9401000 | 4000 K | 90 | 940 (4000K / CRI90) | BXRE-40G04FH-C-83 | 10 ° | 530 lm |
|
|
291BW9402000 | 4000 K | 90 | 940 (4000K / CRI90) | BXRE-40G04FH-C-83 | 20 ° | 530 lm |
|
|
291BW9403000 | 4000 K | 90 | 940 (4000K / CRI90) | BXRE-40G04FH-C-83 | 30 ° | 530 lm |
- Chromaticity tolerance 3 MacAdam
- CRI 90
- Housing material Aluminum Die Cast
- Drivdon Separate Available
- Warranty 5Y
- Light source energy class E
- IP klass IP44
- Product tags IP44
- Light source 930 (3000K / CRI90), 927 (2700K / CRI90), 940 (4000K / CRI90)
- Optic Lens
- Dimring Casambi, DALI, Phase Cut
- Light source identifier BXRE-40G04FH-C-83, BXRE-30G04FH-C-83, BXRE-27G04FH-C-83
- Mått Ø45x66mm
- Cut out dimension Ø40mm
